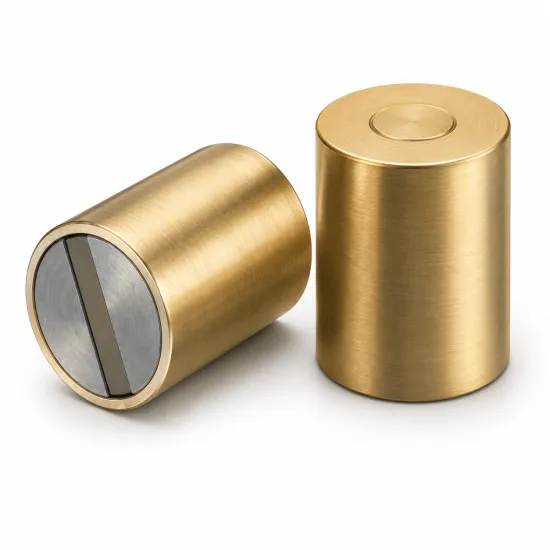

Brass rod magnet Ø 32 mm (h6) x 40 mm | 60,0 kg Samarium Cobalt (SmCo)

Name: Brass rod magnet Ø 32 mm (h6) x 40 mm | 60,0 kg Samarium Cobalt (SmCo)
SKU: SAV 240.09-MH9-08
Price: 48.48 EUR
Availability: InStock

Article number: SAV 240.09-MH9-08

€48.48

Extremely compact Samarium Cobalt (SmCo) brass rod magnet with a precise h6 tolerance fit and machinable flat.

• Diameter: Ø 32 mm (h6 tolerance)
• Height: 40 mm
• Machinable flat (A): 4,5 mm
• Holding force: 60,0 kg
• Weight: 251 g
• Maximum operating temperature: 200 °C

Need higher quantities? Contact us!

Unique construction advantage (Dimension A):
The upper solid brass section (4,5 mm) can be easily machined or shortened to fit your specific application, without affecting the holding force.

Volume discounts

Quantity	Unit price	You Save
10	€47.27	€12.12
25	€46.06	€60.60
50	€43.63	€242.40
100	€41.21	€727.20

Description

Technical specifications

Feature	Specification
Diameter (D)	32 mm (h6 tolerance)
Total Height (H)	40 mm
Machinable flat (A)	4,5 mm (machinable)
Holding force	60,0 kg
Max. Operating temperature	200 °C
Weight	251,00 g

Product description & Industrial integration

This cylindrical Samarium Cobalt (SmCo) brass rod magnet provides the ultimate solution for blind, play-free assembly. The sandwich design ensures the magnetic flux remains fully isolated from the surrounding steel construction until contact is made with the workpiece, effectively preventing magnetic short-circuiting.

Mechanically machinable for customization:
The top section (designated as dimension A) consists of solid brass and contains no magnet core. You can machine or shorten this 4,5 mm area as desired. Benefit: you adapt the magnet exactly to the depth of your hole, while guaranteeing the full 60,0 kg holding force.

Guaranteed fit for precision drilling:
The outer diameter is manufactured to strict h6 tolerance, ensuring a perfect, play-free press fit in CNC-produced components.
