Electromagnets

Circular electromagnets are essential components for switching magnetic force in industrial automation, machine building, and robotics. These electro-holding magnets operate on standard 24V DC (optional 220V DC) and provide constant holding force as long as the power is switched on.

Technical Specifications & Holding Force

The overview below shows the properties per diameter. Click on the Diameter or Holding Force to go directly to the product page.

Diameter (Ø) Height Holding Force

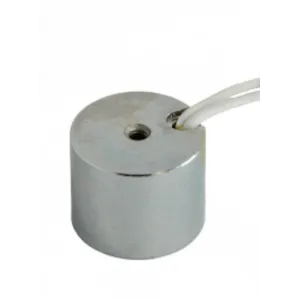

Ø 25 mm 20 mm 14 kg (140 N)

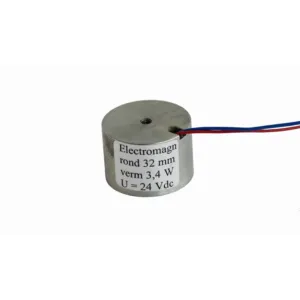

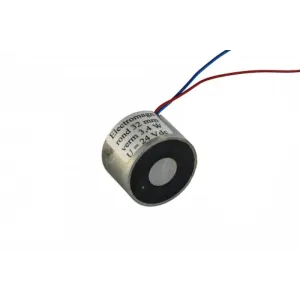

Ø 32 mm 20 mm 23 kg (230 N)

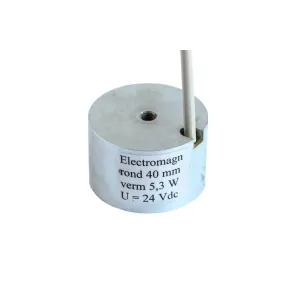

Ø 40 mm 25 mm 40 kg (400 N)

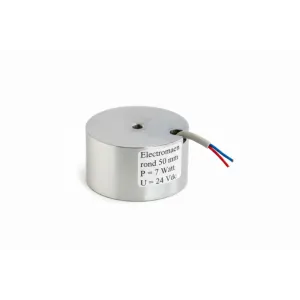

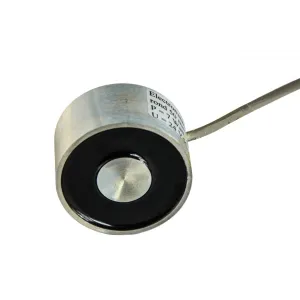

Ø 50 mm 27 mm 70 kg (700 N)

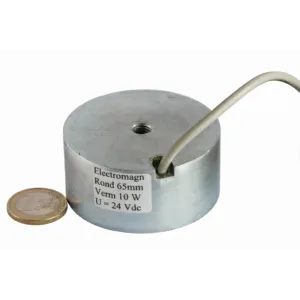

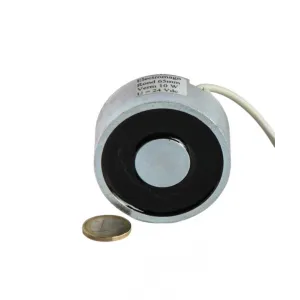

Ø 65 mm 30 mm 100 kg (1000 N)

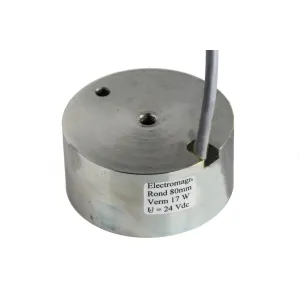

Ø 80 mm 38 mm 220 kg (2200 N)

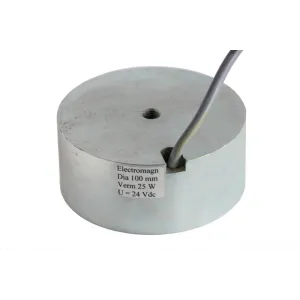

Ø 100 mm 40 mm 340 kg (3400 N)

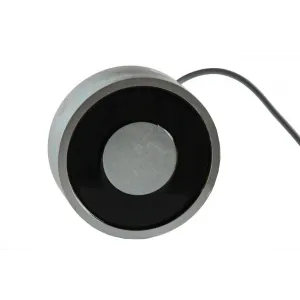

Ø 150 mm 50 mm 850 kg (8500 N)

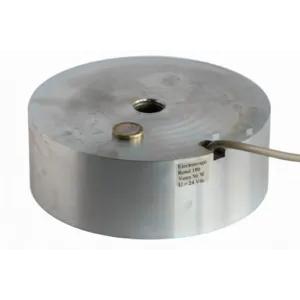

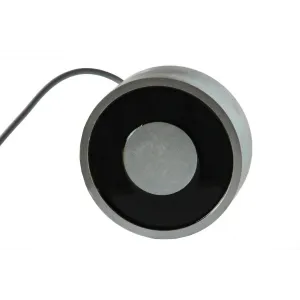

Ø 180 mm 60 mm 1250 kg (12500 N)

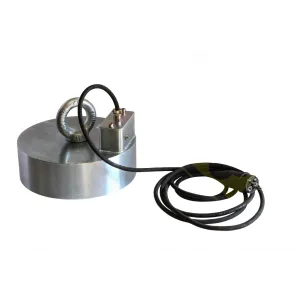

Ø 250 mm 80 mm 2600 kg (26000 N)

Industrial Quality for Continuous Operation

Our SAV electromagnets are designed for a 100% duty cycle (ED), making them ideal for long-term use in industrial processes requiring constant magnetic force. Due to their robust construction and optional 220VDC power supply (including plug), these magnets are suitable for a wide range of operational environments.
