Pneumatic Lifting Magnet NEO-AIR 500 (SAV 531.03)
Article number:
SAV 531.03-NEO-AIr 500
€3,540.00

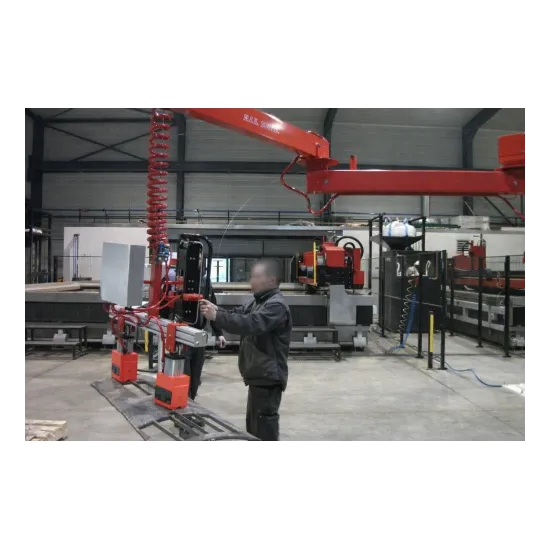

The NEO-AIR 500 is the high-performance model in the series, suitable for a workload of 500 kg on flat material. This magnet is specifically designed for heavier handling tasks in warehouses and on robotic arms where speed and reliability are crucial.
Features & Specifications:
- Capacity: 500 kg (flat) / 250 kg (round).
- Operation: Rapid switching via compressed air (min. 4 bar).
- Safety: Tested break-away force of 1500 daN.
- Dimensions: 296 x 120 mm base; weight 47 kg.
- Application: Perfect for larger steel plates and machine loading.
Key Specifications:
Application: Warehouse, robotic arms and machine loading
| Technical Data | NEO-AIR 500 |
|---|---|

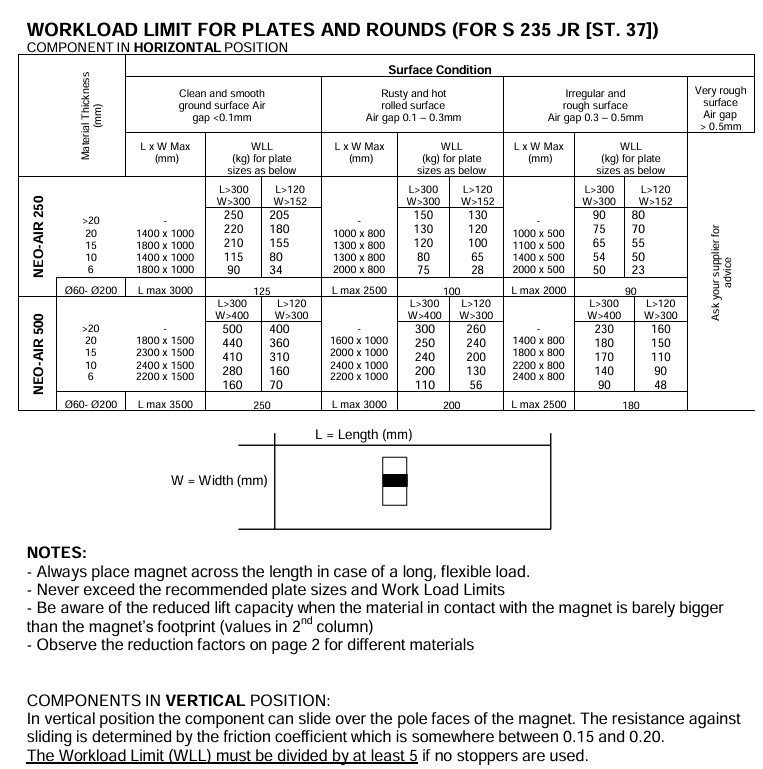

| Lifting capacity flat material | 500 kg |
| Lifting capacity round material | 250 kg |
| Break-away force | 1500 kg |
| Diameter range round (min/max) | Ø 60 - 200 mm |
| Length x Width | 296 x 120 mm |
| Height to crane hook | 365 mm |
| Weight (mass) | 47 kg |
| Cylinder connection | 1/8" |
| Minimum air pressure | 4 bar |
