Pneumatic Lifting Magnet NEO-AIR 250 (SAV 531.03)
Article number:
SAV 531.03-NEO-air 250
€2,824.00

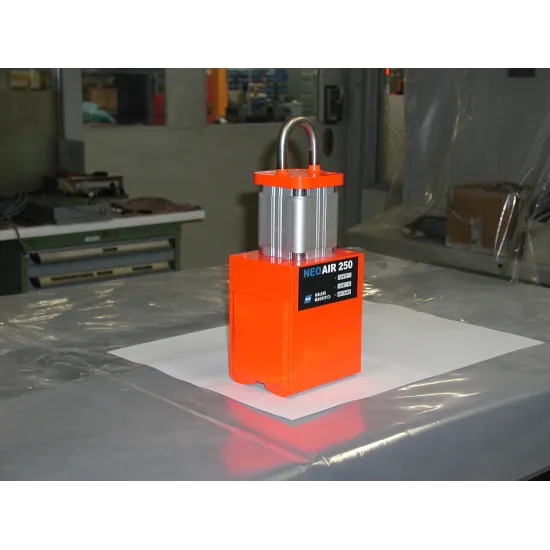

The NEO-AIR 250 is a compact, pneumatically operated permanent lifting magnet for safe lifting of flat steel up to 250 kg and round steel up to 125 kg. Thanks to the bi-stable cylinder, the magnet maintains its current status (ON or OFF) even in the event of air pressure loss, ensuring maximum safety.
Features & Specifications:
- Capacity: 250 kg (flat) / 125 kg (round).
- Operation: Pneumatic (min. 4 bar), ideal for automation.
- Safety: Tested break-away force of 750 daN (Safety Factor 3).
- Dimensions: 152 x 120 mm base; weight 25 kg.
- Extra: Equipped with V-shaped pole shoes and removable lifting eye.
Key Specifications:

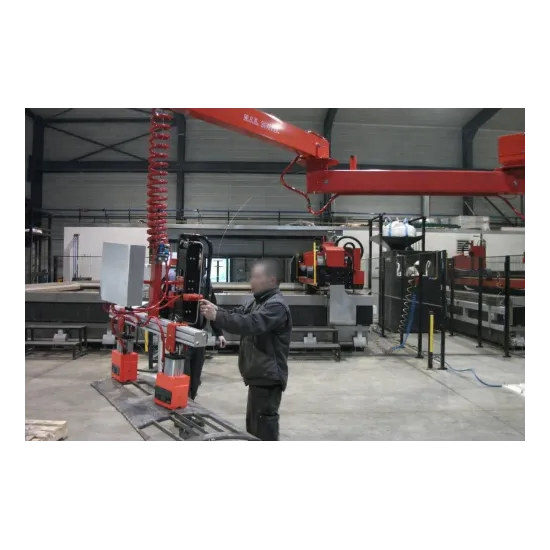

Application: Warehouse, robotic arms and machine loading
| Technical Data | NEO-AIR 250 |
|---|---|
| Lifting capacity flat material | 250 kg |
| Lifting capacity round material | 125 kg |
| Break-away force | 750 kg |
| Diameter range round (min/max) | Ø 60 - 200 mm |
| Length x Width | 152 x 120 mm |
| Height to crane hook | 265 mm |
| Weight (mass) | 25 kg |
| Cylinder connection | 1/8" |
| Minimum air pressure | 4 bar |
