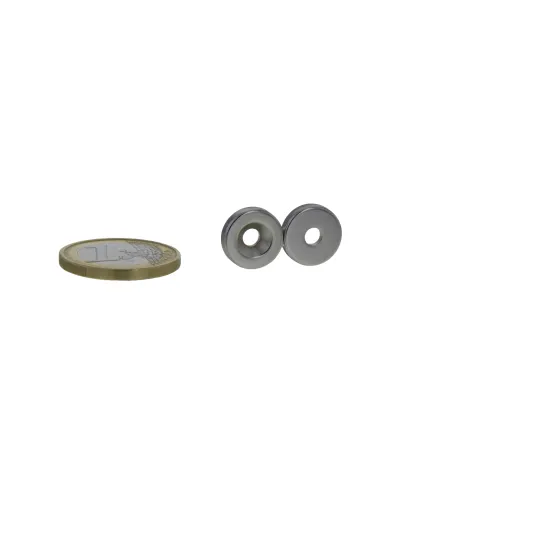

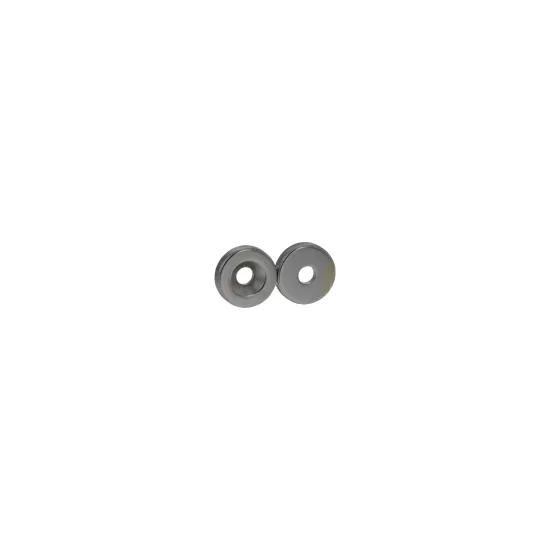

Neodymium ring magnet with countersunk hole, up to 80°C - 12x3,5x3 mm
Neodymium ring magnet with countersunk hole, up to 80°C - 12x3,5x3 mm
Neodymium ring magnet with countersunk hole, up to 80°C - 12x3,5x3 mm

Neodymium ring magnet with countersunk hole, up to 80°C - 12x3,5x3 mm

Article number: SAV 240.55-MK52-12-03-03
€1.28
Geleverd binnen 7 werkdagen

Permanent neodymium magnetic ring with a countersunk hole
The magnet can be firmly attached with a countersunk screw

Dimensions: diameter 12 mm
Hole diameter 3,5 mm
Height 3 mm
Pulling force is approximately 1.8 kg

The magnet is magnetized over the height of 3 mm and has the countersunk hole on the north pole side
Executed in NdFeB quality N35 with a zinc coating
Maximum working temperature is 80 °C
