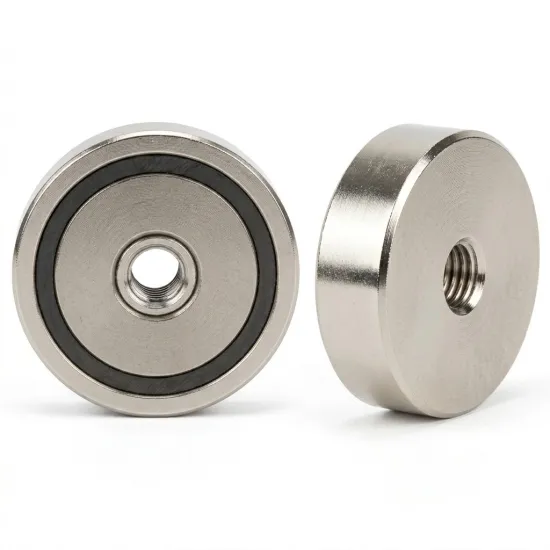

Pot magnet Ø 10 mm, M3 through-hole | 1.9 kg holding f. Neodymium

Article number: SAV 240.38-MH38-310

€1.85

Diameter (D): 10 mm
Height (H): 4.5 mm
Internal thread (M): M3 (through-hole)
Holding force: 1.9 kg (approx. 19 N)
Max. operating temp.: 80 °C
Tolerance: +0.1 / -0.1 mm

Compact Neodymium pot magnet with a central threaded through-hole (M3). Perfectly engineered for quick and highly secure fastening from the rear using a metric bolt or threaded rod. The steel housing channels the magnetic force optimally for maximum performance.

Larger volumes required? Contact us!

Description

Technical specifications

Feature	Specification
Diameter (D)	10 mm
Height (H)	4.5 mm
Thread size (M)	M3 (metric, through-hole)
Holding force	1.90 kg
Max. Operating temp.	80 °C
Weight	2 g

Product description & Industrial integration

This compact Neodymium pot magnet with a threaded through-hole offers a highly efficient solution for mechanical fastenings in machine building, exhibition construction, and the precision engineering industry. Since the magnet is securely mounted from the rear, the front contact surface remains completely smooth and unobstructed.

Guaranteed fit for serial production:
Flawless integration into your CNC-controlled manufacturing processes requires absolute precision. These magnets are supplied with a strict dimensional tolerance of +0.1 / -0.1 mm on both the outer diameter and height. This ensures a perfect fit into your pre-drilled holes or milled slots.

Assembly advice:
The magnet is easily fixed mechanically using a matching metric M3 bolt or screwed directly onto a threaded rod. The zinc-coated steel cup reliably protects the fragile Neodymium core against mechanical impacts and ensures the magnetic flux is fully directed to the pole face for optimal holding force.
