Electromagnet, 250 mm
Electromagnet, 250 mm
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
Electromagnet, 250 mm
Electromagnet, 250 mm

Electromagnet, 250 mm

Article number: SAV 241.31-A25
€1,150.00

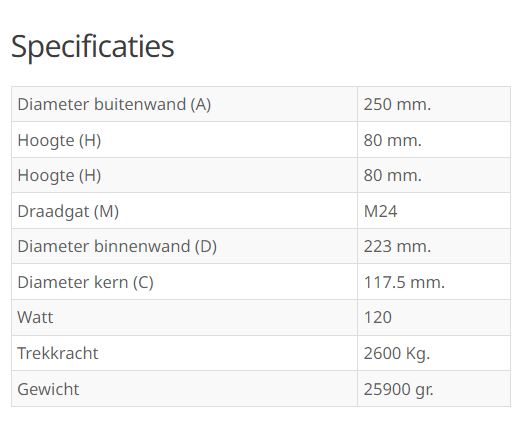

Electromagnet
Diameter x height: 250 x 80 mm
Thread hole M24
120 Watt
Pulling force: 2600 kg
Weight 25900 grCable: 200 cm two-core cable

This item has a delivery time of approximately 1 working week.

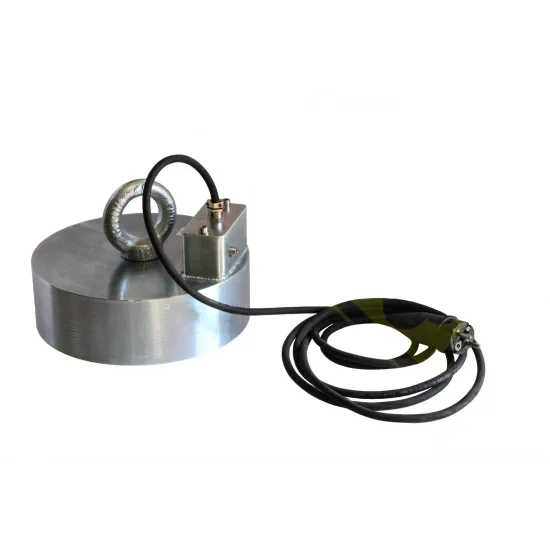

Round electro-adhesive magnet with a connection voltage of 24 VDC and a duty cycle of 100%.
Equipped with a separate cable outlet, which ensures a reliable and constant operation.

Electromagnets are versatile components that play a crucial role in numerous applications, both in industrial environments and in everyday life. Essentially, an electromagnet consists of a coil of insulated wire, usually copper, wound around an iron core.
When an electric current runs through the coil, a magnetic field is generated, causing the iron core to become magnetic and attract metal objects.
As soon as the current is turned off, the magnetism disappears, making the electromagnet a flexible and controllable tool.
