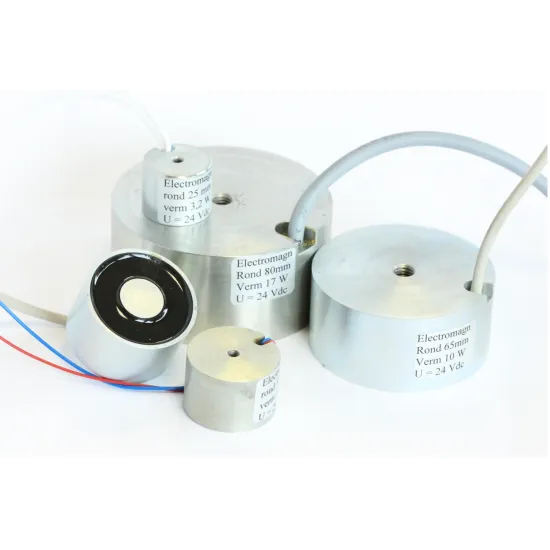

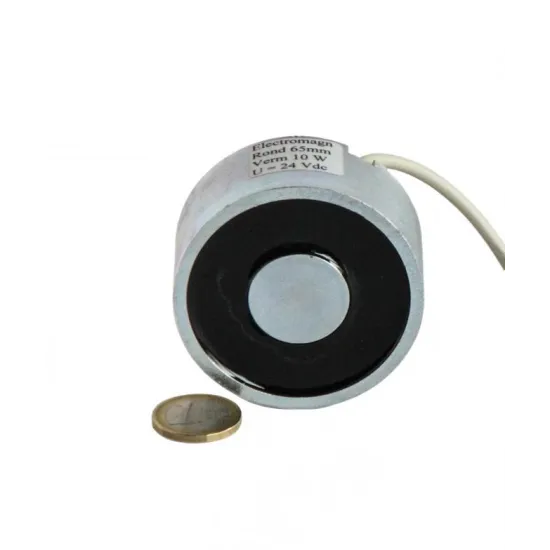

Electromagnet, 65 mm
Electromagnet, 65 mm
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
Electromagnet, 65 mm
Electromagnet, 65 mm

Electromagnet, 65 mm

Article number: SAV 241.31-A06
€74.10

Electromagnet

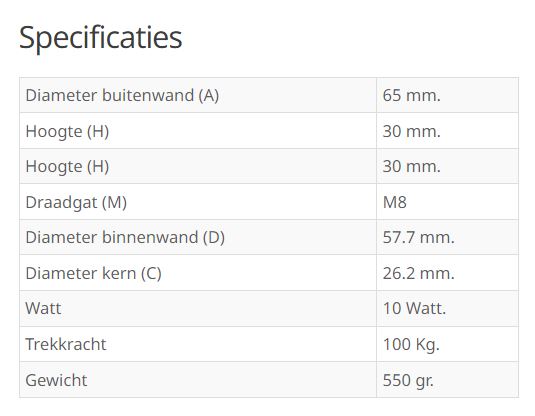

Diameter x height: 65 x 30 mm
Thread hole M8
10 Watt
Pulling force: 100 kg
Weight 550 gr.
Cable: 200 cm two-wire cable

This item has a delivery time of approximately 1-2 working weeks.

Round electro-adhesive magnet with a connection voltage of 24 VDC and a duty cycle of 100%.
Equipped with a loose cable outlet, which ensures a reliable and constant operation.

Electromagnets are versatile components that play a crucial role in numerous applications, both in industrial environments and in everyday life. Essentially, an electromagnet consists of a coil of insulated wire, usually copper, wound around an iron core.
When an electric current runs through the coil, a magnetic field is generated, causing the iron core to become magnetic and attract metal objects.
As soon as the current is turned off, the magnetism disappears, making the electromagnet a flexible and controllable tool.
