Article number: SAV 241.31-A03
€55.10

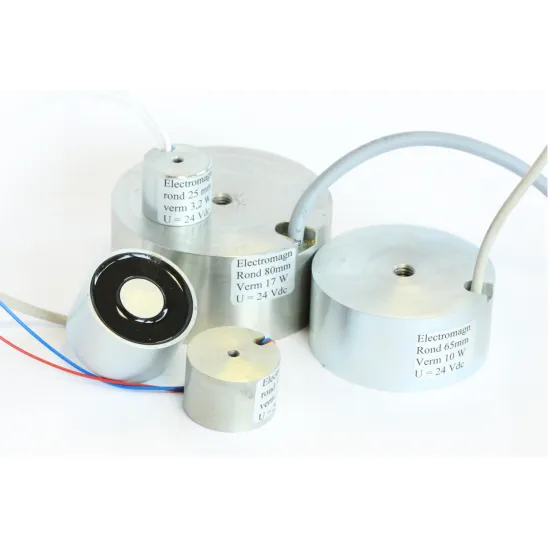

Electro magnet
Diameter x height: 32 x 22 mm
Thread hole M4
3.4 Watt
Pulling force: 23 kg
Weight 110 gr.
Cabel: 3 Loose wires

16-04-2024: currently a delivery time of approx 1-2 working weeks.

Round electro-adhesive magnet with a connection voltage of 24 VDC and a duty cycle of 100%.
Equipped with a loose cable outlet, which ensures reliable and constant operation.

Electromagnets are versatile components that play a crucial role in numerous applications, both in industrial environments and in everyday life. Essentially, an electromagnet consists of a coil of insulated wire, usually copper, wound around an iron core.
When an electric current runs through the coil, a magnetic field is generated, causing the iron core to become magnetic and attract metal objects.
As soon as the current is turned off, the magnetism disappears, making the electromagnet a flexible and controllable tool.
