Electromagnet, 50 mm
Electromagnet, 50 mm

Electromagnet, 50 mm

Article number: SAV 241.31-A05
€68.40

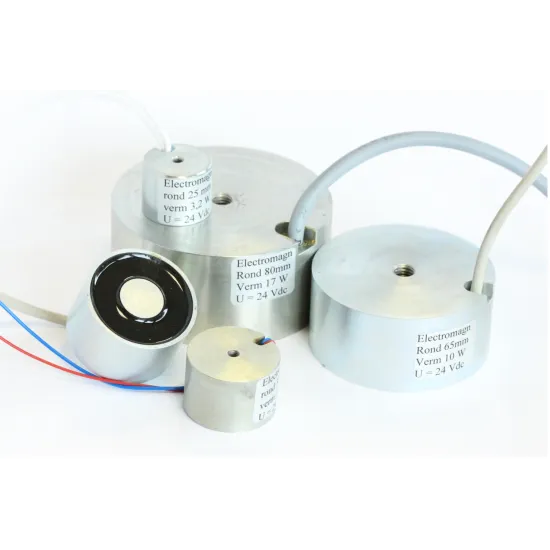

Electromagnet
Diameter x height: 50 x 27 mm
Thread hole M5
1 Watt
Pulling force: 70 kg
Weight 300 gr.
Cable: 30 cm two-wire cable

This item has a delivery time of approximately 1-2 working weeks.

Round electro-adhesive magnet with a connection voltage of 24 VDC and a duty cycle of 100%.
Equipped with a separate cable outlet, which ensures reliable and consistent operation.

Electromagnets are versatile components that play a crucial role in numerous applications, both in industrial environments and in everyday life. At its core, an electromagnet consists of a coil of insulated wire, usually copper, wrapped around an iron core.
When an electrical current passes through the coil, a magnetic field is generated, making the iron core magnetic and able to attract metal objects.
As soon as the current is switched off, the magnetism disappears, making the electromagnet a flexible and controllable tool.
