Electromagnet, 80 mm
Electromagnet, 80 mm

Electromagnet, 80 mm

Article number: SAV 241.31-A08
€104.50

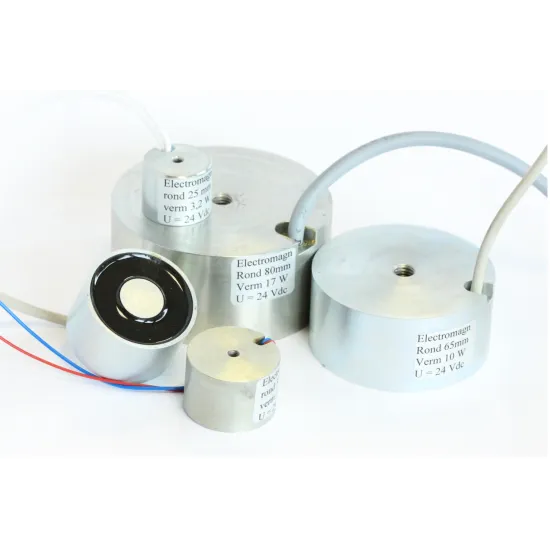

Electro Magnet
Diameter x height: 80 x 38 mm
Thread hole M8
17.2 Watt
Pulling force: 2200 kg
Weight 1200 gr.
Cable: 30 cm two-wire cable

This magnet has a delivery time of about 1-2 working weeks.

Round electro-adhesive magnet with a connection voltage of 24 VDC and a duty cycle of 100%.
Equipped with a separate cable outlet, which ensures reliable and constant operation.

Electromagnets are versatile components that play a crucial role in numerous applications, both in industrial environments and in everyday life. Essentially, an electromagnet consists of a coil of insulated wire, usually copper, wound around an iron core.
When an electric current runs through the coil, a magnetic field is generated, causing the iron core to become magnetic and attract metal objects.
As soon as the current is turned off, the magnetism disappears, making the electromagnet a flexible and controllable tool.
