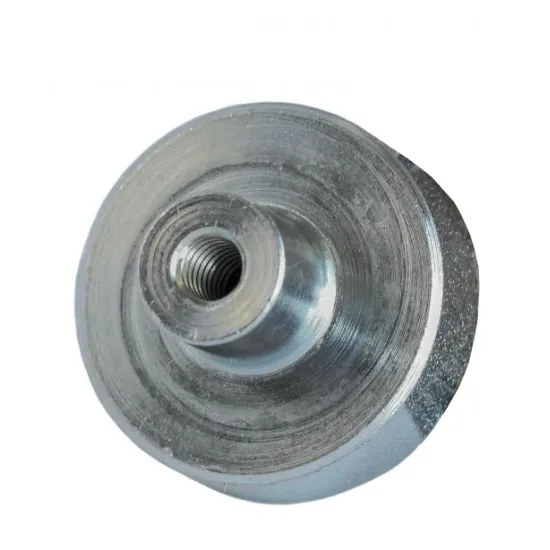

Neodymium pot magnet with threaded bushing galvanized, Ø 25 mm - 20 kg pulling force
Neodymium potmagneet met draadbus, verzinkt, zeer krachtig Ø 16 x 4,5 mm

Neodymium pot magnet M4 (Ø25mm) | 20 kg pull force

Article number: SAV 240.36-MH36-25
€5.07

Dimensions: dia 25 x height 7 mm
Threaded insert M4
Diameter threaded insert 8 mm
Total height: 14 mm
Pulling force 20 kg
Weight 27 gr
Maximum operating temperature 80°C.

Need more quantities? Get in touch!

Volume discounts

Quantity Unit price You Save
10 €4.94 €1.27
25 €4.82 €6.34
50 €4.56 €25.35
100 €4.31 €76.05
Specification Value
Diameter (D) 25 mm
Height (H) 7 mm
Thread (M) M4
Threaded bush diameter (d) 8 mm
Total height (L) 14 mm
Max. operating temperature 80 °C
Pulling force 20 Kg
Weight 27 g

Neodymium Pot Magnet with external thread

This powerful neodymium pot magnet is the ideal solution for situations requiring maximum holding force in a compact size.
The magnet is encased in a zinc-plated steel pot that concentrates the magnetic field, significantly increasing the pull force.

Why this pot magnet is the best choice:

  • Extremely Powerful Neodymium: Manufactured from the world's strongest magnetic material for superior grip.
  • Concentrated Magnetic Force: The steel housing protects the magnet and ensures extra high pull force on the contact surface.
  • Easy Assembly: Thanks to the integrated threaded stud, the magnet can be quickly and directly mounted in various structures.
  • Versatile & Compact: The zinc-plated finish makes the magnet suitable for countless industrial applications and mounting systems up to 80°C.

Note: This system is zinc-plated and therefore not rust-proof during long-term outdoor use.
