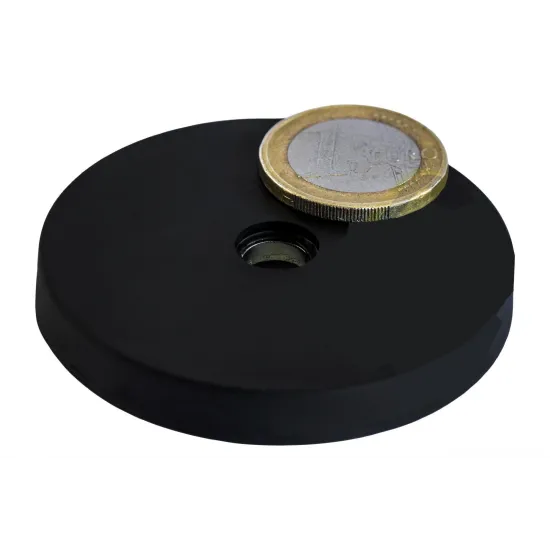

Rubber magnet counterbore hole Ø57mm neodymium black

Article number: SAV 240.43-MG57-B
€9.12

Extra-strong neodymium rubber magnet with counterbore hole for heavy-duty fastening.

This Ø57 mm rubber magnet is the most powerful in its series, boasting a pull force of 20 kg. The system features a wide cylindrical counterbore, allowing bolt heads to sit fully flush. The thick rubber coating provides maximum grip and protects your surfaces from scratches.

  • Diameter: 57 mm
  • Pull force: 20 kg
  • Bore: Counterbore (d1: 8 mm / d2: 25 mm)
  • Extremely high shear force: 7.8 kg
Feature Specification
Diameter (D) 57 mm.
Height (H) 7.6 mm.
Bore diameter (d1) 8 mm.
Counterbore diameter (d2) 25 mm.
Insertion depth (h) 3.3 mm.
Max. operating temperature 60 °C
Pull force 20 Kg.
Shear force 7.8 Kg.
Weight 77 gr.

Need larger quantities? Please contact us!

This extra-strong neodymium rubber magnet is designed for applications requiring high pull force. Featuring a cylindrical counterbore hole, this magnet is perfect for mounting with bolts where a completely flush finish is required. The rubber coating protects the surface and provides superior grip on vertical metal surfaces.
