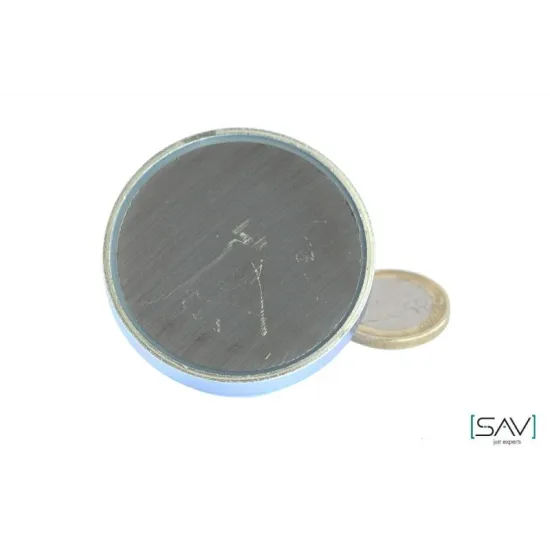

Ferrite pot magnet with threaded bushing Ø 80 x 18 mm M10

Type: SAV 240.02. Hard ferrite pot magnet, with zinc-plated shielding and threaded insert.
These pot magnets are equipped with a steel housing that shields the magnetic field and also forms a magnet system that increases the pulling force of the magnet.

Do you want to go magnet fishing? Then use the Ø80 & 100 mm version. These are very suitable for fishing (lost) metal items out of the water. Make your magnet ready for fishing with rope and an eye bolt: you can find it here.

Maximum usage temperature: Zinc-plated version: 200°C.

Note: The full holding force is only achieved when the ferromagnetic counter-piece is smooth and thick enough and the pot magnet connects directly and over its entire surface.
Pot magnets already lose a lot of holding force from a distance of half a millimeter from the ferromagnetic surface.
This property is more pronounced in pot magnets than in other ferrite magnets and neodymium magnets.

In outdoor use, the steel pots may develop surface rust, which does not limit the function of the magnets.

F10A-vM3 / F13A-vM3 / F16A-vM3 / F20A-vM3 / F25A-vM4 / F32A-vM4 / F36A-vM4 / F40A-vM4 / F40A-vM5 / F47A-vM6 / F50A-vM6 / F57A-vM6 / F63A-vM6 / F63A-vM8 / F80A-vM8 / F80A-vM10 / F100A-vM12 / F125A-vM14
